We as a whole have a doorbell at our homes. At the point when a guest goes to our home, he looks for the doorbell switch and afterward rings it to tell us his essence. On the off chance that the who went to our home can't discover the doorbell or something bad might happen if the individual is diminutive to the point that he can't arrive at the doorbell, what should be possible? How might it be on the off chance that we utilize a programmed doorbell which rings when an individual shows up at our place? There are no more problems. The individual who goes to our home need not quest for the doorbell and press it any more. On the off chance that we introduce this programmed doorbell utilizing object location circuit, the circuit will consequently detect the presence of the individual and it rings the doorbell.

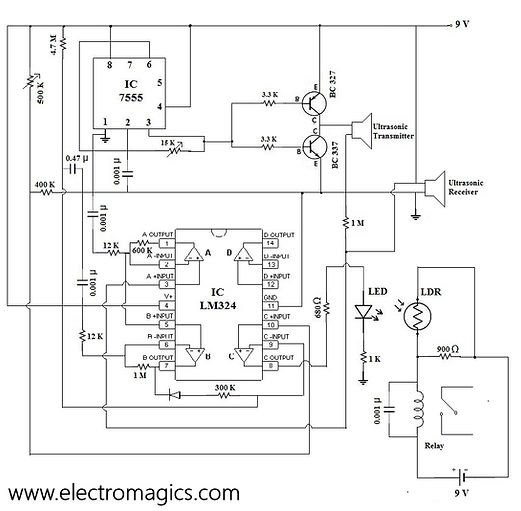

This circuit works utilizing a couple of ultrasonic transmitter and beneficiary modules which are utilized to distinguish the individual and afterward if the individual is identified, the entryway ringer is consequently turned ON when the individual is before the entryway.
The ultrasonic transmitter works at a recurrence of around 40 Kilo-Hertz. That implies it consistently sends the ultrasonic floods of about 40KHz. The force supply ought to be moderate to such an extent that the scope of the transmitter is just around a couple of meters.
On the off chance that the sending power is short of what one meter, quite possibly the individual who is one meter away isn't recognized. Additionally, in the event that the reach is set to be huge, it might prompt bogus setting off, implying that, the items far away from our entryway are considered as the guests and the caution rings. This can be an aggravation for us if the caution rings for each item or individual far away. In this way, to dodge both the issues, the sending power is kept to an ideal level.
The ultrasonic collector module gets the force at the recurrence same as that of the transmitter's so that clamor will be wiped out and we get less bogus setting off. The affectability of the beneficiary can be tuned by utilizing the 500K-ohm variable resistor organized as a pot in the circuit. By tuning this appropriately, we can accomplish the ideal outcomes. The yield of our circuit is given to a bell circuit which goes about as a doorbell for our situation. The collector in this circuit utilizes IC LM324 which is inside has four operation amps. Out of the four operation amps, we are utilizing just four of them and leaving the other one unused as it isn't greatly needed for our situation. The three operation amps are utilized in fell plan to give high acquire just as clamor free yield.
An opto coupler is utilized at the yield to evade any association between our circuit and the entryway chime.
Collect the circuit on a PCB as compactly as could really be expected and afterward append it to your primary entryway. That is it! You may give a force supply utilizing a 9V DC connector with separated and controlled yield. In the event that the 9V connector with managed yield isn't accessible, we prescribe you to utilize a 12V unregulated DC connector with 7809 voltage controller.
